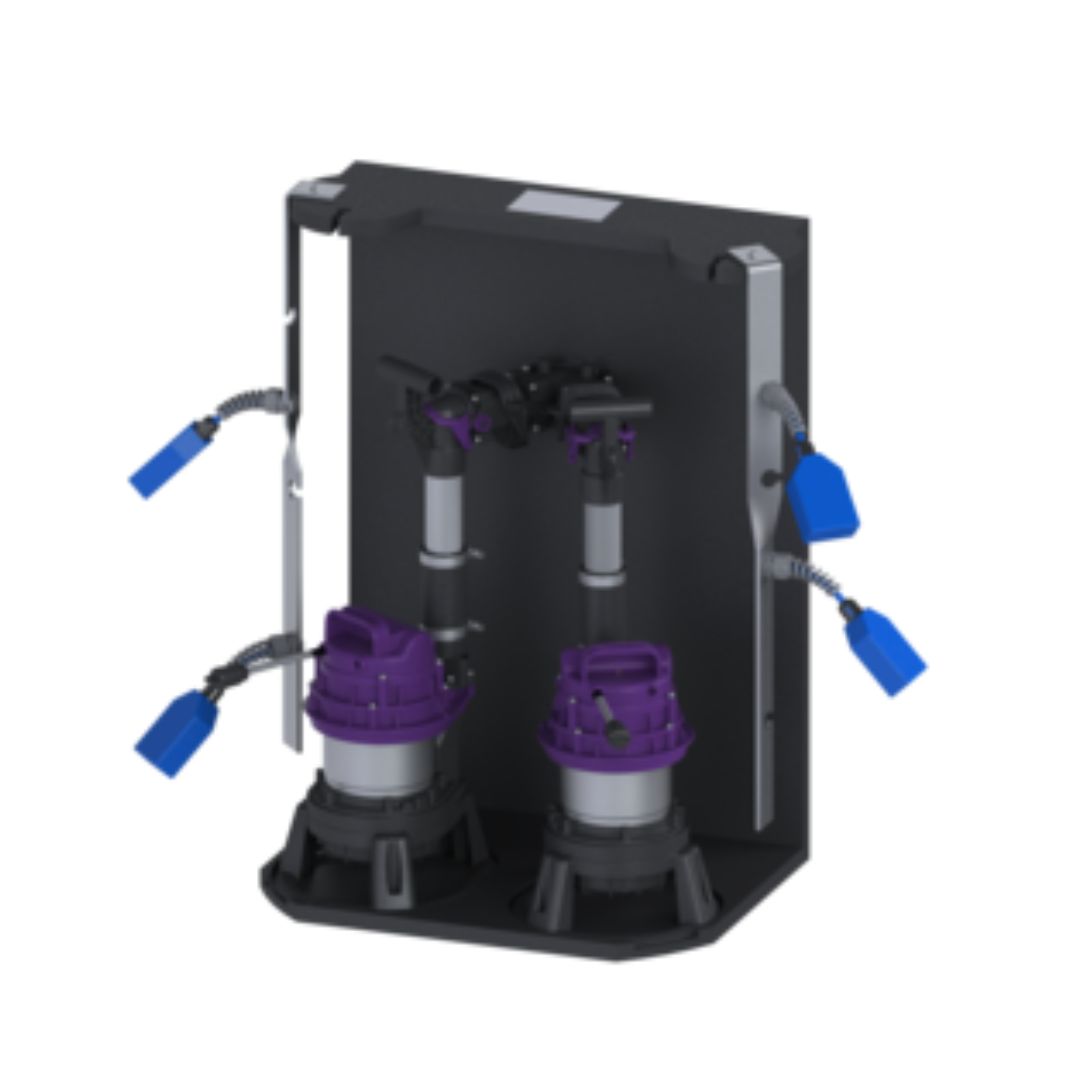

KESSEL Pump installation kit Retrofit M Duo, wastewater without sewage, installation in on-site collecting tank, with 2 submersible GTF 1200 pumps, delivery rate 15,5 m³/h, Backflow preventer integrated, alarm generator with Float switch

Description

Pump installation kit Retrofit M Duo, GTF 1200, Floater
The pump installation kit for installation in existing collection tanks for wastewater without sewage is equipped with two submersible pumps suitable for continuous operation, and two backflow preventers. The compact polymer (PU) bracket is used for the variable mounting of components in various application scenarios and to fasten the pumping system, even in confined spaces. The components are pre-assembled for final assembly on site.

Variant
Type of system: duo pump
Pump control: Control unit
Backflow preventer: integrated
Pressure pipe connection: horizontal

General characteristics
Standard: EN 12050-2
Type of wastewater: without sewage
Installation situation: installation in on-site collecting tank
Delivery state: Modular set for assembly on site
System type: Duo

Dimensions
Net weight: 21 kg
Gross weight: 21 kg
Packaging dimension: length: 800 mm
Packaging dimension: width: 700 mm
Packaging dimension: height: 910 mm

Tank/drain body
Pressure pipe connection (DN): 32
Pressure pipe connection (OD): 40 mm

Pumping device
Pump: GTF 1200
Number of pumps: 2
Weight, pump: 10 kg
Connection type: coded plug
Operating voltage: 230 V
Mains frequency: 50 Hz
Protection class: I
Insulation class: F
Cos phi – power factor: 0,98
Protection class (pump): IP 68 (3m)
Temperature monitoring: integrated
Max. temperature (permanent) of conveyed material: 40 °C
Max. pumping capacity: 15,5 m³/h
Max. pumping height: 9 m
Speed: 2650 U/min
Power P1: 1,4 kW
Power P2: 0,84 kW
Operating mode: S1
Type of pump connection cable: H07RN-F 3G 1.5 mm²
Impeller type: Multi-vane impeller
Type of fuse required (pump): C 16 A
Length of mains cable for pump: 10 m
Rated current: 6,2 A

Control
Control unit: Comfort
Alarm sensor: Float switch
Level measurement instrument: Float switch
Type of level measurement: mechanical
Protection class control unit: IP 54
Mains frequency: 50 Hz
Operating voltage: 230 V
Connection type: coded plug
Length of mains cable for control unit: 1,4 m
Potential-free contact: optional
GSM interface: yes
USB interface: yes
Log book function: yes
Multi-line display: yes
Battery buffering: yes
Self-diagnosis system (SDS): yes
