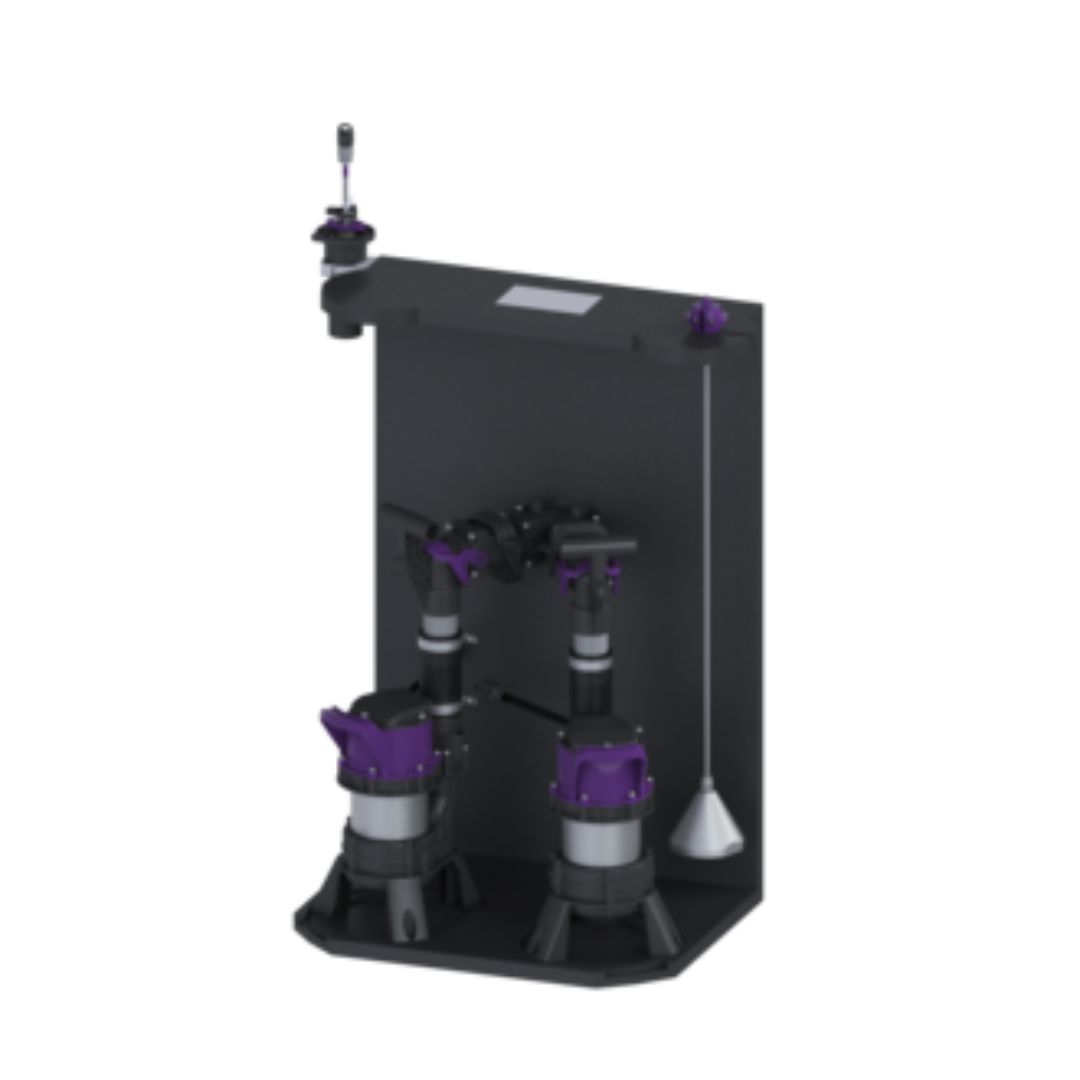

KESSEL Pump installation kit Retrofit S Duo, wastewater without sewage, installation in on-site collecting tank, with 2 submersible GTF 600-S1 pumps, alarm generator with Float switch, delivery rate 12 m³/h, Backflow preventer integrated

Description

Pump installation kit Retrofit S Duo, GTF 600,submersible pressure switch
The pump installation kit for installation in existing collection tanks for wastewater without sewage is equipped with two submersible pumps suitable for continuous operation, and two backflow preventers.
The compact polymer (PU) bracket is used for the variable mounting of components in various application scenarios and to fasten the pumping system, even in confined spaces.
All common types of pressure pipe can be connected using the 90° quick-release closure. Quick-release closures enable the integrated components to be removed easily.
The components are pre-assembled for final assembly on site.
Control is carried out by means of a level float via user-friendly 230V Connect Duo control unit that can optionally be integrated into the building management system through a potential-free contact.

Variant
Type of system: duo pump
Pump control: Control unit
Backflow preventer: integrated
Pressure pipe connection: horizontal

General characteristics
Standard: EN 12050-2
Type of wastewater: without sewage
Installation situation: installation in on-site collecting tank
Delivery state: Modular set for assembly on site
System type: Duo

Dimensions
Net weight: 24 kg
Gross weight: 24 kg
Packaging dimension: length: 654 mm
Packaging dimension: width: 550 mm
Packaging dimension: height: 600 mm

Tank/drain body
Pressure pipe connection (DN): 32
Pressure pipe connection (OD): 40 mm

Pumping device
Pump: GTF 600-S1
Number of pumps: 2
Weight, pump: 6 kg
Connection type: Schuko (earthed contact) 2-pin
Operating voltage: 230 V
Mains frequency: 50 Hz
Protection class: I
Insulation class: F
Cos phi – power factor: 0,92
Protection class (pump): IP 68 (3m)
Temperature monitoring: integrated
Max. temperature (permanent) of conveyed material: 40 °C
Max. pumping capacity: 12 m³/h
Max. pumping height: 8 m
Speed: 2750 U/min
Power P1: 0,65 kW
Power P2: 0,4 kW
Operating mode: S1
Type of pump connection cable: H07RN-F 3G 1.5 mm²
Impeller type: Multi-vane impeller
Free passage: 30 mm
Type of fuse required (pump): C 16 A
Length of mains cable for pump: 10 m
Rated current: 2,9 A

Control
Control unit: Comfort
Motor protection switch: yes
Alarm sensor: Float switch
Level measurement instrument: Submersible pressure switch
Type of level measurement: pneumatic
Protection class control unit: IP 54
Mains frequency: 50 Hz
Operating voltage: 230 V
Connection type: Schuko (earthed contact) 2-pin
Length of mains cable for control unit: 1,4 m
Potential-free contact: optional
GSM interface: yes
USB interface: yes
Log book function: yes
Multi-line display: yes
Battery buffering: yes
Self-diagnosis system (SDS): yes
