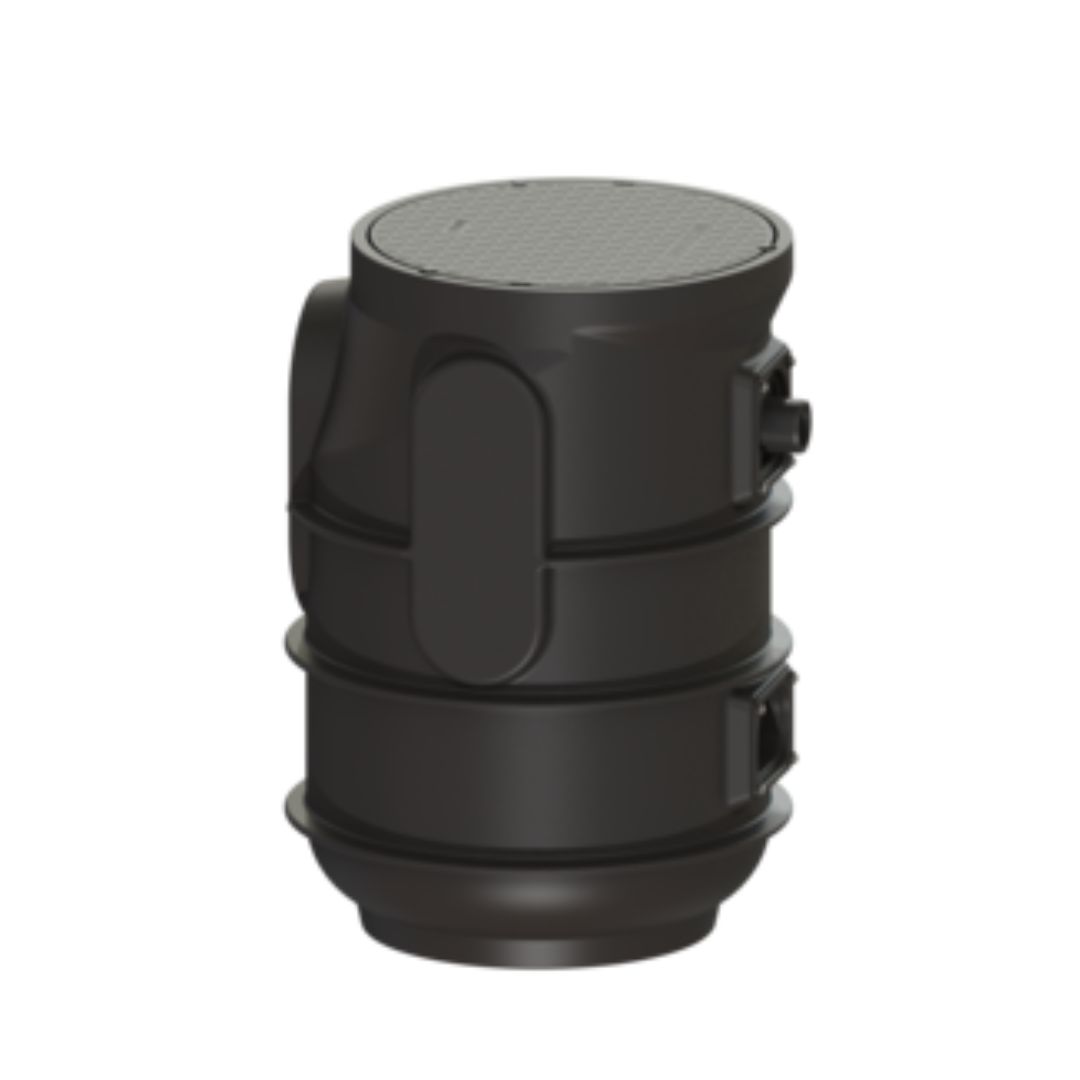

KESSEL Pumping station Aquapump Small, alarm generator with Float switch, Duo, wastewater for wastewater with and without sewage, Wet installation, with 2 submersible STF 1300 pumps, level measurement mechanical

Description

Pumping station Aquapump Small Duo, Basic, STF 1300
The pumping station for wastewater with and without sewage is suitable for underground installations and is equipped with a backflow preventer for the pressure pipe. The PE tank is resistant to domestic wastewater and includes a pedestrian class polymer cover plate. The pump with multi-vane impeller ensures maximum operating reliability. Quick-release closures enable the integrated components to be removed easily. The components are pre-assembled for final assembly on site. Including openings for inlet, ventilation and cable duct.

Variant
Type of system: duo pump
Installation: Wet installation
Pump control: Control unit
Backflow preventer: integrated

General characteristics
Colour: black
Standard: EN 12050-2 as well as EN 12050-1 (without ATEX requirements)
Type of wastewater: for wastewater with and without sewage
Installation situation: underground installation
System type: Duo

Dimensions
Net weight: 41 kg
Gross weight: 51 kg
Length: 615 mm
Width: 600 mm
Height: 830 mm
Packaging dimension: length: 1200 mm
Packaging dimension: width: 800 mm
Packaging dimension: height: 954 mm

Tank/drain body
Pressure pipe connection (DN): 50
Pressure pipe connection (OD): 63 mm
Inlet max. scoring (DN): 100
Pumping volume: 60 l

Coverage features
Type of cover: Round cover plate
Colour of cover: black
Locking: lockable
Load class: K 3 (EN 1253-1)

Pumping device
Pump: STF 1300
Number of pumps: 2
Weight, pump: 10 kg
Connection type: Schuko (earthed contact) 2-pin
Operating voltage: 230 V
Protection class: I
Insulation class: F
Protection class (pump): IP 68 (3m)
Temperature monitoring: integrated
Max. temperature (permanent) of conveyed material: 40 °C
Max. pumping capacity: 21 m³/h
Max. pumping height: 10 m
Speed: 2650 U/min
Power P1: 1,3 kW
Power P2: 0,8 kW
Operating mode: S3 – 50 %
Type of pump connection cable: H07RN-F 3G 1.5 mm²
Impeller type: Multi-vane impeller
Free passage: 40 mm
Length of mains cable for pump: 10 m
Rated current: 6 A

Control
Control unit: Basic
Control unit function: With alarm message
Motor protection switch: yes
Alarm sensor: Float switch
Level measurement instrument: Float switch
Type of level measurement: mechanical
Protection class control unit: IP 54
Mains frequency: 50 Hz
Operating voltage: 230 V
Connection type: Schuko (earthed contact) 2-pin
Length of mains cable for control unit: 1,45 m
Potential-free contact: optional
Battery buffering: yes
Self-diagnosis system (SDS): yes
Warning equipment version: acoustic and optical signal
Type of fuse required (control unit): C 16 A
