KESSEL Pumping station Aquapump XL, wastewater for wastewater with and without sewage, installation depth 1400 – 1850 mm, with a submersible VX 15/50 pump, operating mode S1, level measurement pneumatic

Description

Pumping station Aquapump XL Tronic, Basic, AP 501, 1400-1850 mm

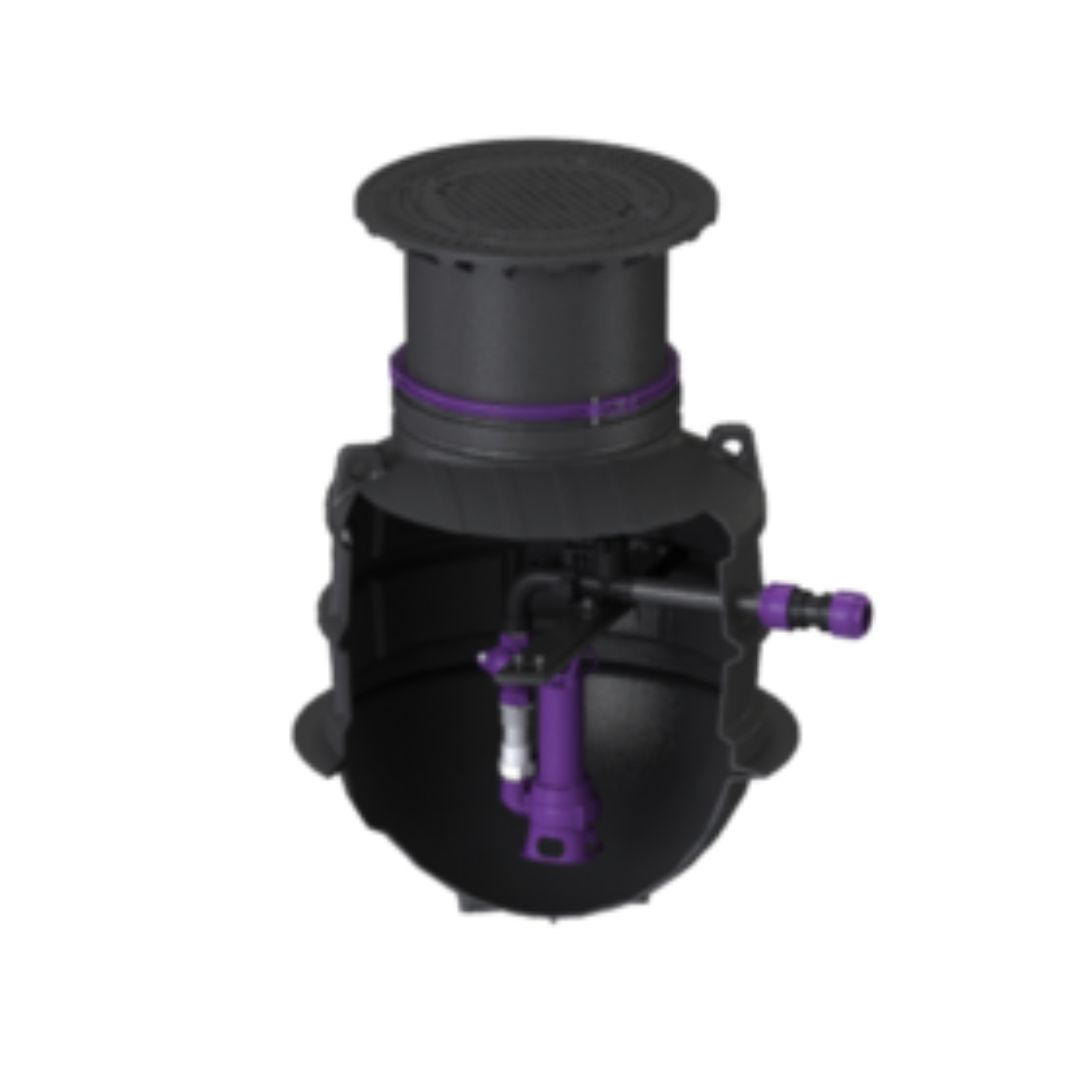

The pumping station for wastewater with and without sewage is suitable for underground installation and is equipped with a backflow preventer for the pressure pipe. The PE tank is resistant to domestic wastewater and includes a pedestrian class polymer cover plate. The pump with multi-vane impeller ensures maximum operating reliability. Quick-release closures enable the integrated components to be removed easily. The components are pre-assembled for final assembly on site. Including openings for inlet, ventilation and cable duct.

Variant
Type of system: Single unit
Backflow preventer: integrated

General characteristics
Colour: black
Standard: EN 12050-2 as well as EN 12050-1 (without ATEX requirements)
Type of wastewater: for wastewater with and without sewage
Installation situation: underground installation
System type: Tronic

Dimensions
Net weight: 167 kg
Gross weight: 182 kg
Groundwater resistant from lower edge of base section: 1000 mm
Installation depth: 1400 – 1850 mm
Length: 1260 mm
Width: 1220 mm
Packaging dimension: length: 1260 mm
Packaging dimension: width: 1220 mm
Packaging dimension: height: 1850 mm

Tank/drain body
Pressure pipe connection (DN): 50
Pressure pipe connection (OD): 63 mm
Inlet nominal size (OD): 100 mm
Inlet nominal size (DN): 90
Pumping volume: 200 l

Pumping device
Pump: VX 15/50
Number of pumps: 1
Connection type: Schuko (earthed contact) 2-pin
Operating voltage: 230 V
Mains frequency: 50 Hz
Protection class (pump): IP 68
Temperature monitoring: integrated
Max. temperature (permanent) of conveyed material: 40 °C
Max. pumping capacity: 39 m³/h
Max. pumping height: 11 m
Speed: 2900 U/min
Power P1: 1,55 kW
Power P2: 1,1 kW
Operating mode: S1
Type of pump connection cable: H07RN-F 3G 1.5 mm²
Impeller type: Multi-vane impeller
Type of fuse required (pump): C 16 A
Length of mains cable for pump: 10 m
Rated current: 7 A

Control
Control unit: Comfort
Level measurement instrument: Pressure sensor
Type of level measurement: pneumatic
Protection class control unit: IP 54
Mains frequency: 50 Hz
Operating voltage: 230 V
Connection type: Schuko (earthed contact) 2-pin
Length of mains cable for control unit: 1,45 m
Potential-free contact: optional
Multi-line display: yes
Battery buffering: yes
Self-diagnosis system (SDS): yes
Type of fuse required (control unit): C 16 A
