KESSEL Lifting station Aqualift 200 Duo, wastewater without sewage, coded plug, pump control by Control unit, control unit Comfort, with 2 submersible GTF 1250 pumps, operating mode S1

Description

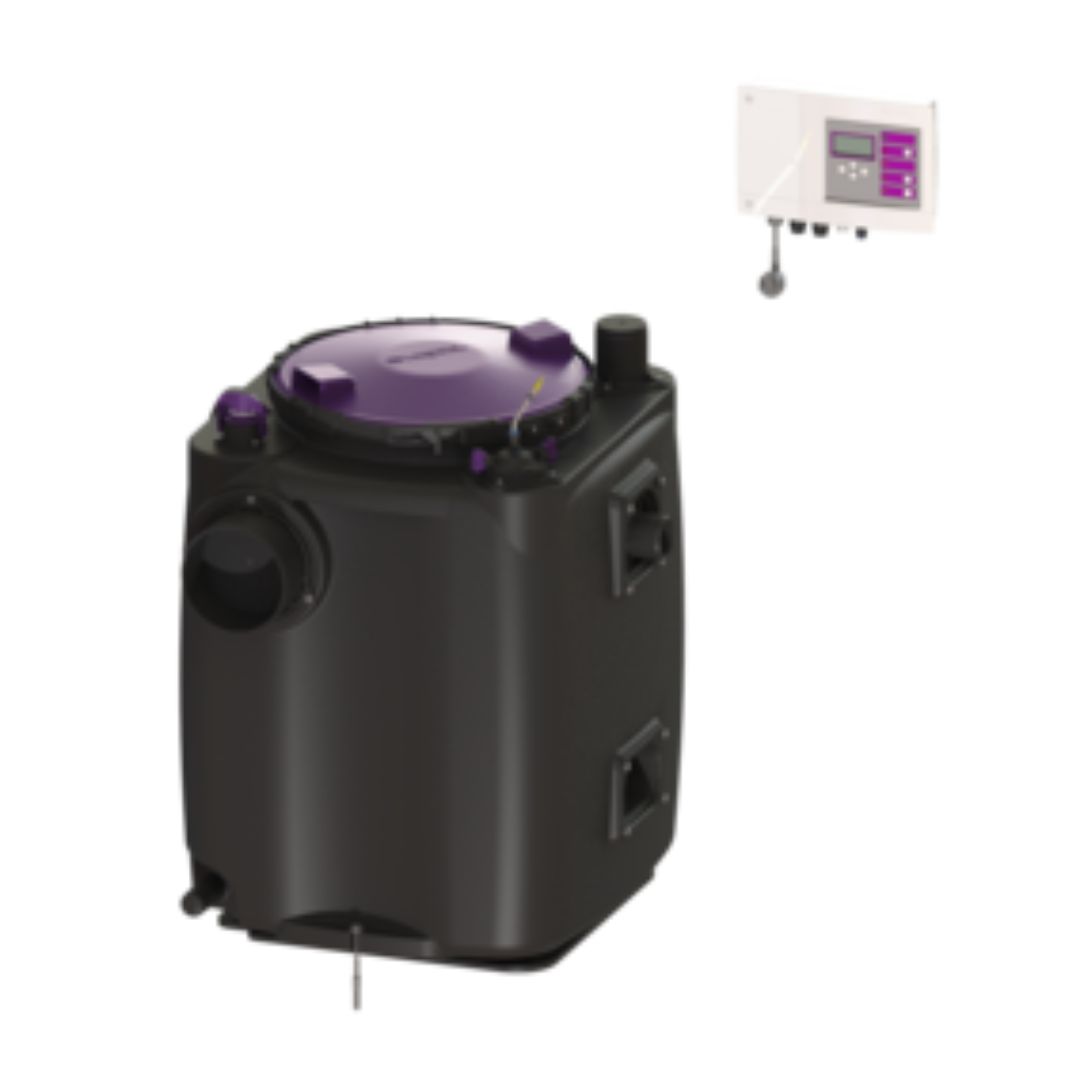

Lifting station Aqualift 200 Duo, GTF 1250, Free-standing set-up
The ready to plug in lifting station for faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank. One-handed closures enable easy removal of the integrated components.

Variant
Type of system: duo pump
Pump control: Control unit
Backflow preventer: integrated

General characteristics
Colour: black
Standard: EN 12050-2
Type of wastewater: without sewage
Installation situation: free-standing installation
Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected)
System type: Duo
Tightness: odour-tight

Dimensions
Net weight: 42 kg
Gross weight: 49 kg
Length: 670 mm
Width: 655 mm
Height: 815 mm
Packaging dimension: length: 900 mm
Packaging dimension: width: 900 mm
Packaging dimension: height: 939 mm

Tank/drain body
Pressure pipe connection (DN): 50
Pressure pipe connection (OD): 63 mm
Inlet nominal size (DN): 100
Pumping volume: 100 l
Tank volume: 220,00 l

Coverage features
Type of cover: Cover
Cover material: Polymer
Colour of cover: violet
Locking: Quick-release closure
Tightness: odour-tight

Pumping device
Pump: GTF 1250
Number of pumps: 2
Weight, pump: 10 kg
Connection type: coded plug
Operating voltage: 230 V
Protection class: I
Insulation class: F
Protection class (pump): IP 68 (3m)
Temperature monitoring: integrated
Max. temperature (permanent) of conveyed material: 40 °C
Max. pumping capacity: 20 m³/h
Max. pumping height: 11 m
Speed: 2700 U/min
Power P1: 1,3 kW
Power P2: 0,8 kW
Operating mode: S1
Type of pump connection cable: H07RN-F 3G 1.5 mm²
Impeller type: Multi-vane impeller
Free passage: 30 mm
Length of mains cable for pump: 5 m
Rated current: 5,4 A

Control
Control unit: Comfort
Control unit function: With alarm message
Motor protection switch: yes
Level measurement instrument: Immersion pipe
Type of level measurement: pneumatic
Protection class control unit: IP 54
Mains frequency: 50 Hz
Operating voltage: 230 V
Connection type: coded plug
Length of mains cable for control unit: 1,4 m
Potential-free contact: optional
GSM interface: yes
USB interface: yes
Log book function: yes
Multi-line display: yes
Battery buffering: yes
Self-diagnosis system (SDS): yes
Warning equipment version: acoustic and optical signal
Type of fuse required (control unit): C 16 A
