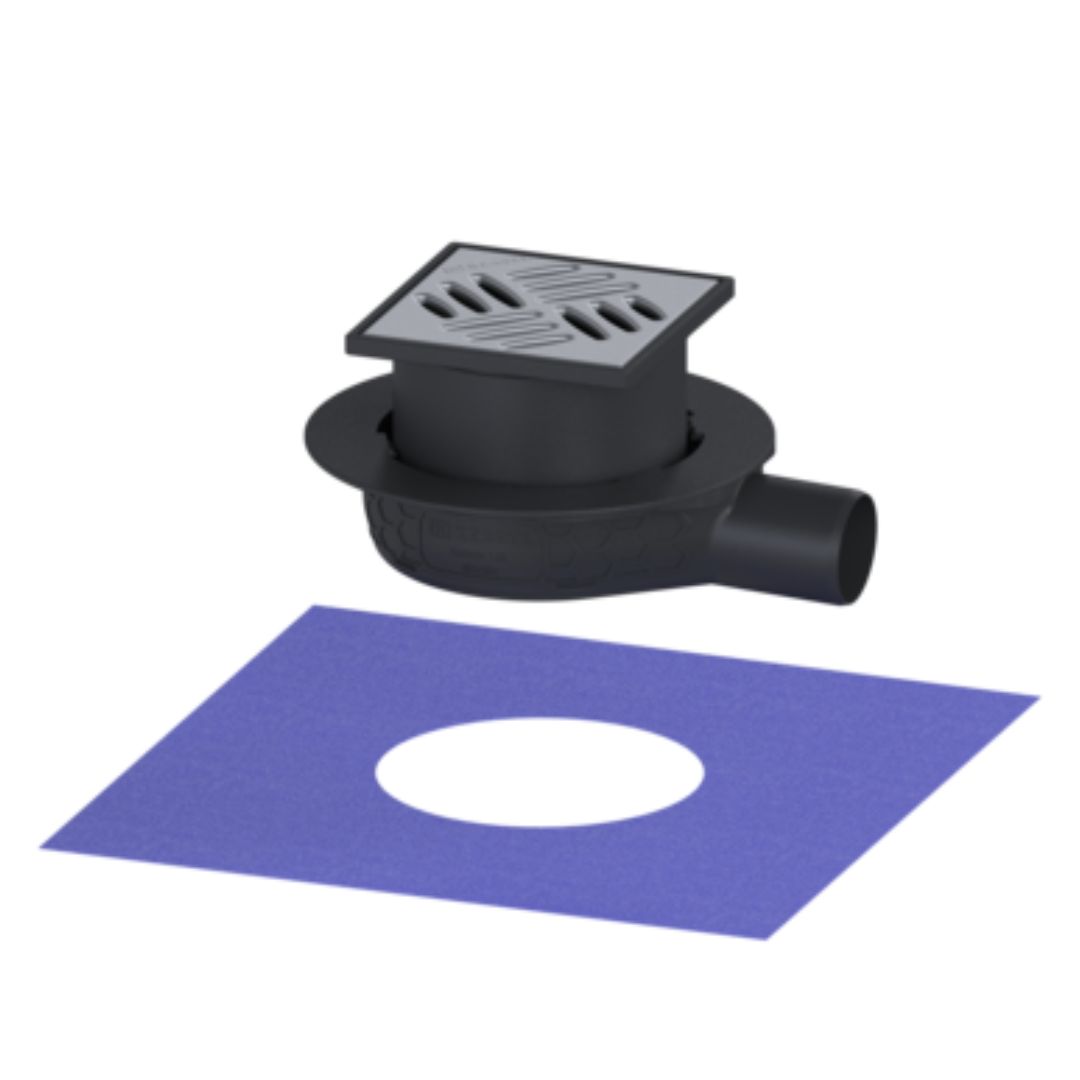

KESSEL The Ultraflat 54 floor drain, nominal size (DN) 50, type of cover Slotted cover, height adjustability 63 – 116 mm, load class K 3, frame material ABS, odour trap included, W2-I

Description

The Ultraflat 54 floor drain DN 50, enclWPM, Slotted grating
The Ultraflat 54 floor drain is suitable for indoor floor drainage. The polymer drain is equipped with a removable odour trap in the upper section. Open seepage water opening, no flooding of the waterproofing level in the event of build-up.

Variant
System: 125
Seepage opening: optional
Waterproofing layer on the drain body: Enclosed sealing collar to be glued (bd) according to DIN 18534
Water exposure class in accordance to DIN 18534-1 (up to and including): W2-I
Sealing water height: 22 mm

General characteristics
Nominal size (DN): 50
Outer diameter (OD): 50 mm
Odour trap: included
Sustainable: through the use of recycled material

Dimensions
Vertical adjustment: 63 – 116 mm
Net weight: 0,67 kg
Gross weight: 0,67 kg
Type of height adjustability: vertically adjustable upper section
Length: 246 mm
Width: 200 mm
Height: 54 mm
Packaging dimension: length: 245,7 mm
Packaging dimension: width: 200,6 mm
Packaging dimension: height: 121,5 mm

Tank/drain body
Number of outlets: 1
Material of drain body: ABS

Coverage features
Type of cover: Slotted cover
Cover material: Stainless steel 14301
Colour of cover: silver
Width of cover: 120 mm
Height of cover: 16 mm
Length of cover: 120 mm
Min. flooring height: 9 mm
Surface: Polished SST
Frame material: ABS
Locking: unlocked
Load class: K 3 (EN 1253-1)
Rim width: 130 mm
Rim length: 130 mm
Max. flooring height: 62 mm
Shape of upper section: square
Upper section material: ABS
